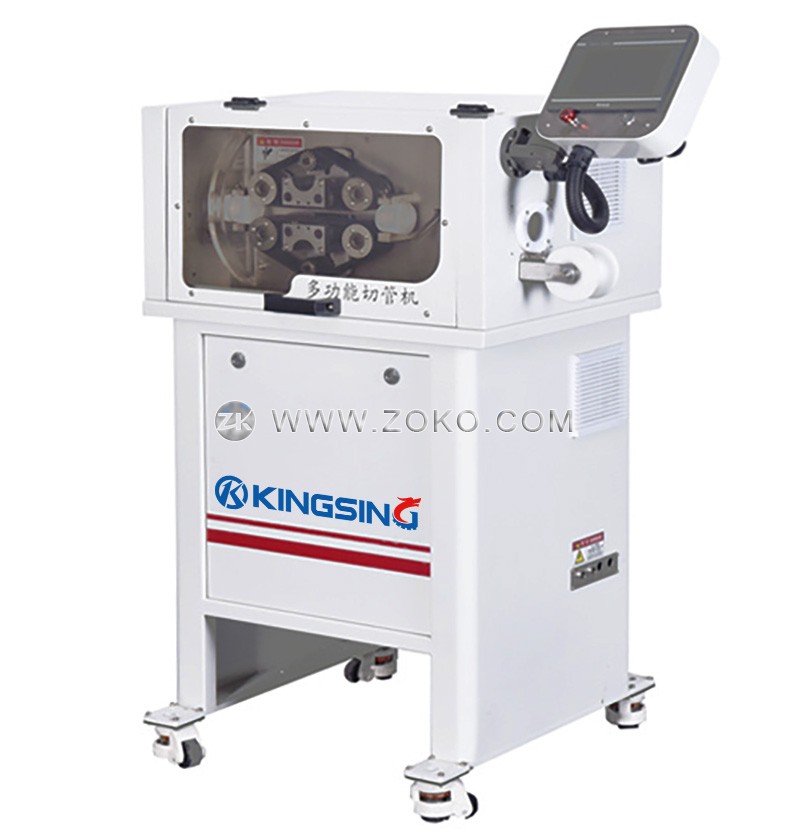

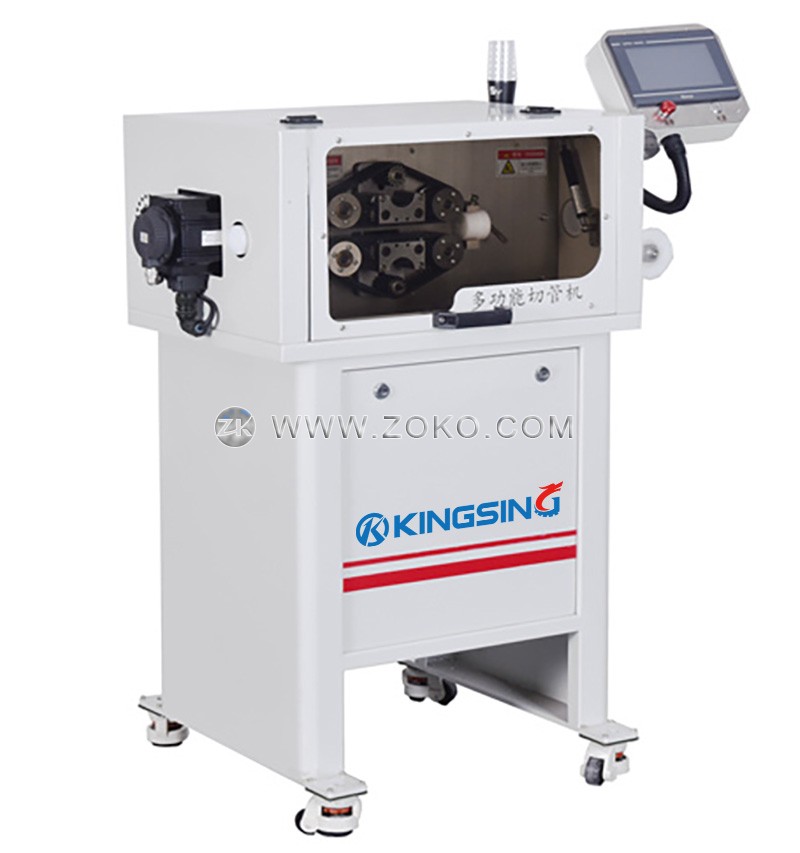

This is a high-speed pipe cutting machine, its main advantage is that the speed is very fast, it can be used with the extruder to cut pipes online, and it is also suitable for occasions that need to increase production capacity.

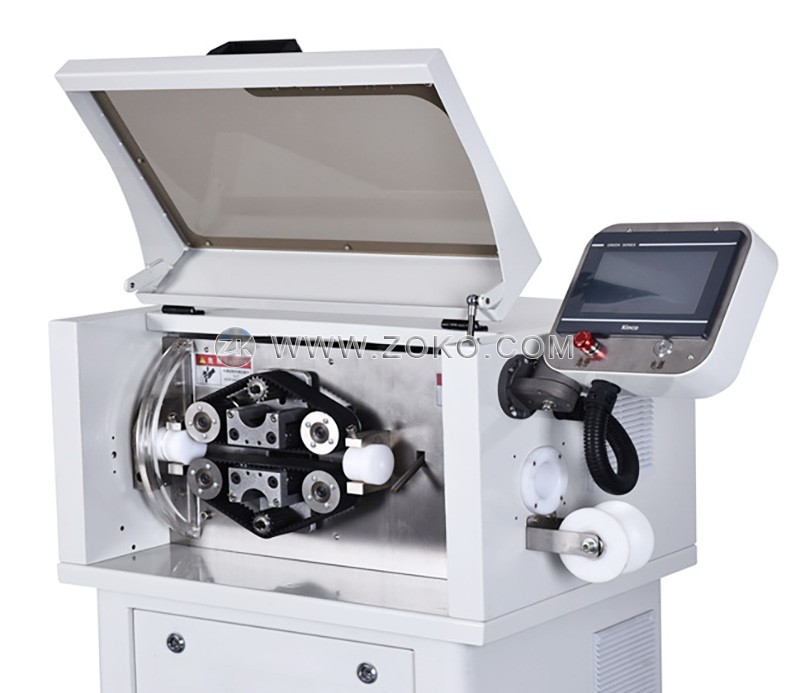

The cutting knife of this machine is a utility blade, which can be easily purchased around the world, it can greatly reduce the cost of use.
The belt feeding wheel is driven by a high-precision stepping motor, and the contact area between the belt and the tube is large, which can effectively prevent slippage during the feeding process, so it can ensure high feeding accuracy.
Power Supply：220V 50~60HZ
Cutter Power:2.0KW servo motor
Power：2.3KW
Cutting diameter：Φ1~Φ36mm hose
Length error：±0.2~0.5%(depending on the tube material)
Speed：50~400 pieces/minute (depending on the length)
Dimension：850*520*1200mm
Weight:150KG
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
