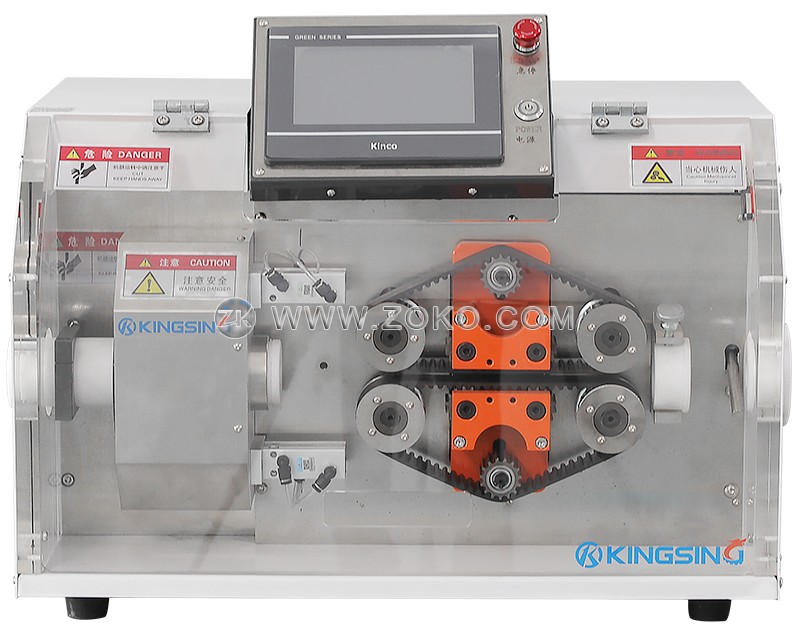

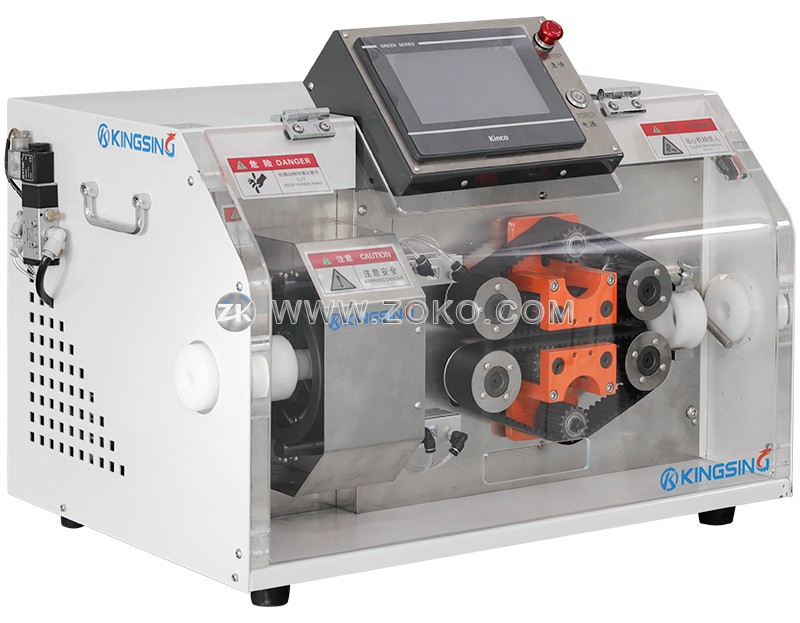

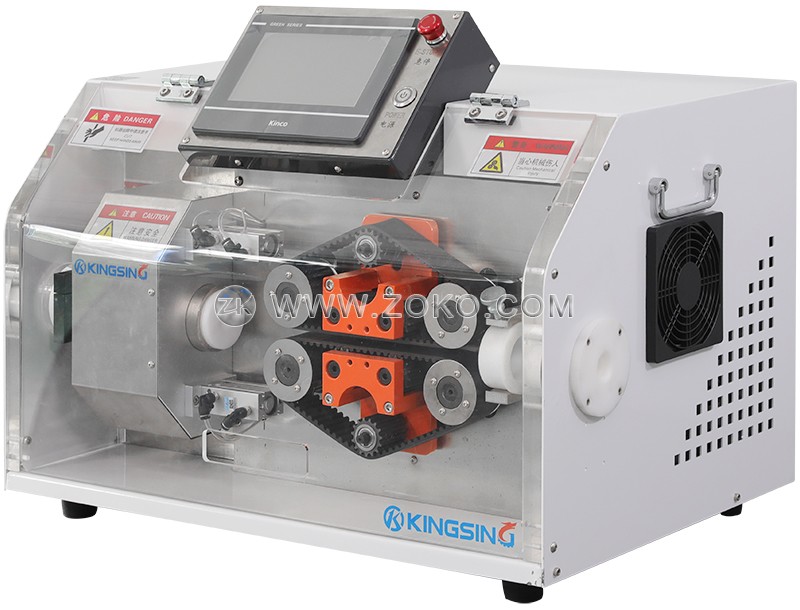

Rotary Knife Pipe Cutting Machine

  • Model：KS-P542R
  • Brand：KINGSING
  • Voltage：220V (Can be customized)
  • Function：
  • Price：
Online Inquiry

This machine is a rotary knife automatic pipe cutting machine, it is suitable for cutting PVC pipes with a certain hardness. The blade rotates around the pipe to cut it, this method can ensure that the nozzle will not be squeezed and deformed, and the incision will be smooth and neat.

It adopts belt feeding, since the contact area between the belt and the pipe is relatively large, which is beneficial to prevent the pipe from slipping during the feeding process, so it can ensure good feeding accuracy.

KINGSING


Download: (1)

Tube Diameter: Ф5~42mm

Blade Type: rotary blade

Cutting Length: 0.1~9999.9mm

Cutting Accuracy: ±0.5+L×0.002mm(L=cutting length)

Speed: 60 pcs/min (Depends on cutting length)

Power Supply: 220V/50Hz

Power Rating: 500W

Air Pressure: 0.5~0.7Mpa

Net Weight: 70kg

Dimension(L×W×H): 540*560*570mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
