English

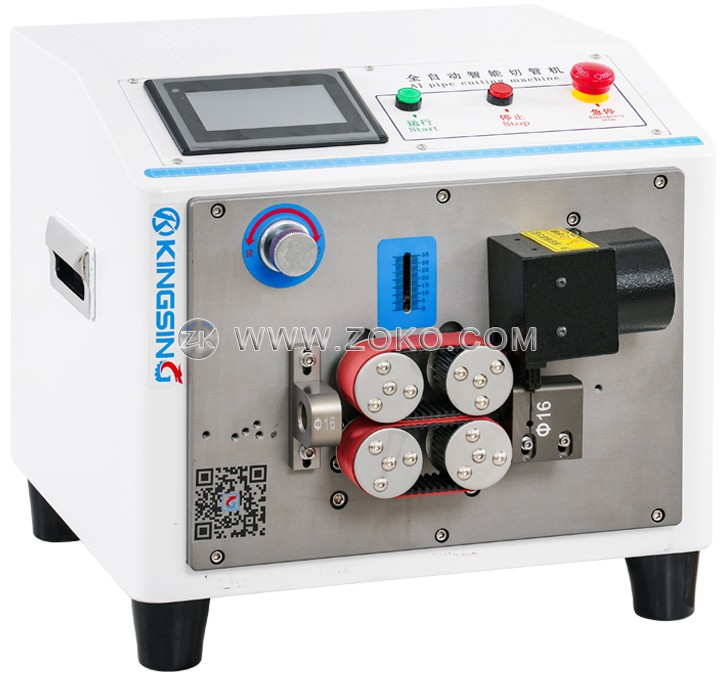

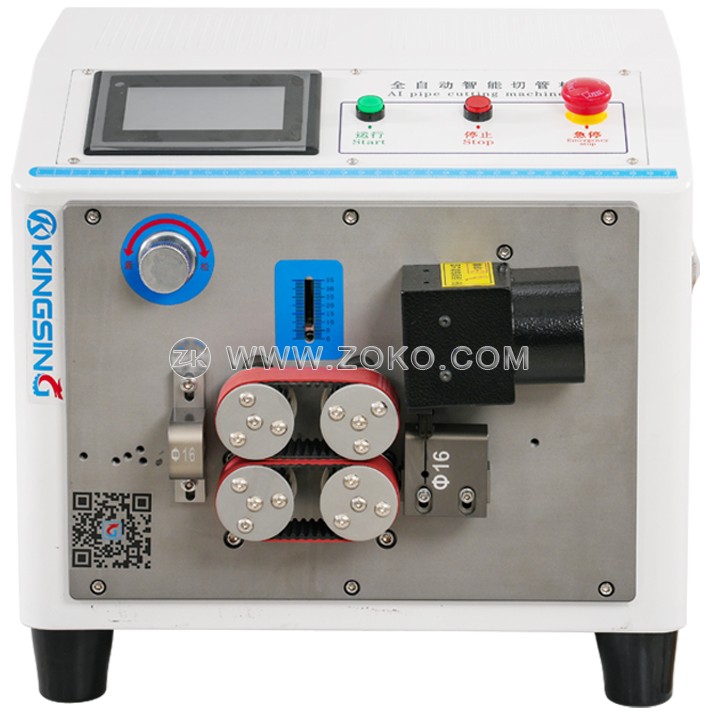

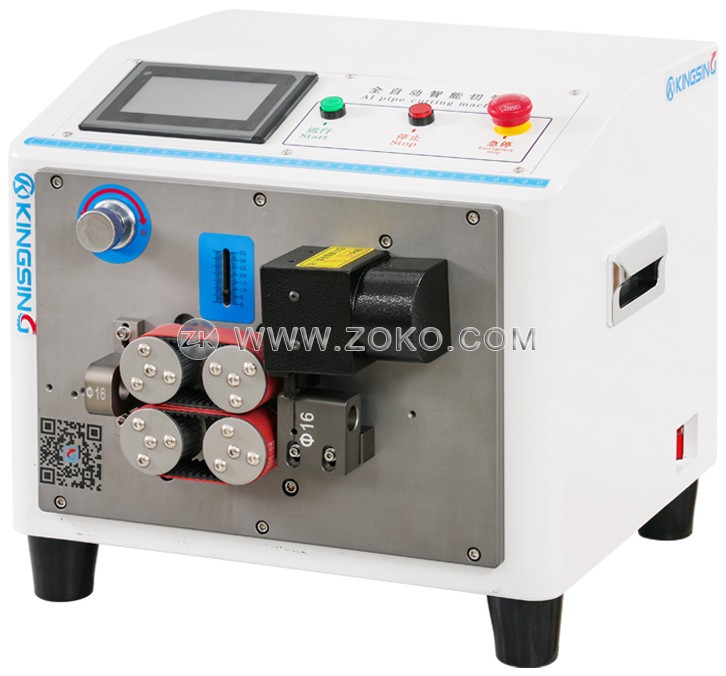

This machine adopts the latest 32-bit intelligent control system, with a touch screen that switches between Chinese and English. It can store hundreds of pieces of information and call it at any time. It is efficient, convenient and fast. Suitable for heat shrink tube, PVC tube, nylon braided tape, rubber tube.
Display mode: 4.3-inch touch screen operation
Power supply: AC110/175~250V 60/50Hz
Power: 120W~220W
Weight: 32kg
Cutting length: 0.1-99999.9mm
Cutting diameter: 0.1-16mm
Cutting tolerance: within 0.002×Lmm※L
Blade material: imported tungsten steel/high speed steel
Drive mode: 4-wheel hybrid drive simultaneously
Cutting per hour: 2000-20000 pieces
Pulse equivalent: no error within 5 meters
Blade motor accuracy per step: 0.03mm
Dimensions: 400mm×700mm×350mm
Incoming and outgoing wire motor accuracy: Silent hybrid stepper motor 0.1mm per step
Remarks functions: automatic wire out, automatic wire in, timed start
Note：
The machine parameters are used as reference indicators. If the product is special, samples need to be confirmed.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
